COMPONENTS
Healing Hex
Healing Hex
Transfers & Analogs
Transfers & Analogs
TRANSFER POSTS
Impression Posts Interchangeable
with 2mm and 3mm Well
Transfer Post
One Stage Short
Transfer Post
One Stage Regular
Transfer Post
One Stage Long
650-000-000
650-001-001
650-002-002
Part Name
Part Number
650-000-000
650-001-001
650-002-002
Impression Posts
Interchangeable with
2mm and 3mm Well
ANALOGS
Implant Analogs W2
100-200-350
100-200-400
100-200-500
Implant Analog 3.5
Implant Analog 4.0
Implant Analog 5.0
100-200-350
100-200-400
100-200-500
Part Name
Part Number
Implant Analog W3
100-200-145-3
Implant Analog 4.5
100-200-145-3
Part Name
Part Number

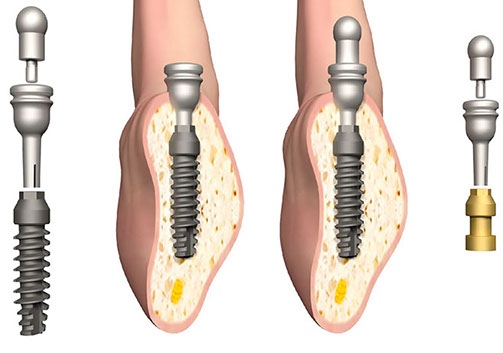

Impression without removing Healing Plug
Impression
Post
One Stage
Healing
Abutment
Analog
Lab Components
Implant with
Healing Plug
Ready for
Impression
IMPRESSION WITHOUT REMOVING HEALING PLUGS:
- Transfer post is pressure fitted into the Healing Plug eliminating screwing it into position
- Lengths: short, regular, long
- Use Short Post for bite registration if desired
- Use to select permanent abutment angulation
- Adjust the retention of the Transfer Post to the Healing Plug by spreading the tip - See below
UNITOOL
903-001-000
UniTool
903-001-000
Part Name
Part Number
- Adjusts the impression posts to the desired retention
- Assists in holding the Post while spreading the tip with a #15 blade
- Place the Impression Post into the Uni-Tool to adjust
- to the desired retention by holding the post down with
- the Uni-tool against a flat surface and spreading the
- Transfer Post tip with a #15 blade
