Implants
Healing TL
Healing Hex
Transfers

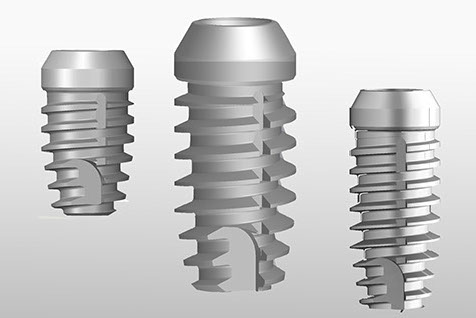

THREAD IMPLANTS

  • QVS SYSTEM - Quality - Versatility – Simplicity
  • All American System manufactured in the USA with US Titanium
  • Implants may be placed from 2 mm below the crest to 2 mm above the crest
    depending upon available bone and abutment selection

  • Implants may be placed with Thread-In or Push-In techniques. See Video
  • Implants packaged with healing plugs
  • Minimal inventory required
  • Esthetic Emergence Profile can be obtained at any bone level

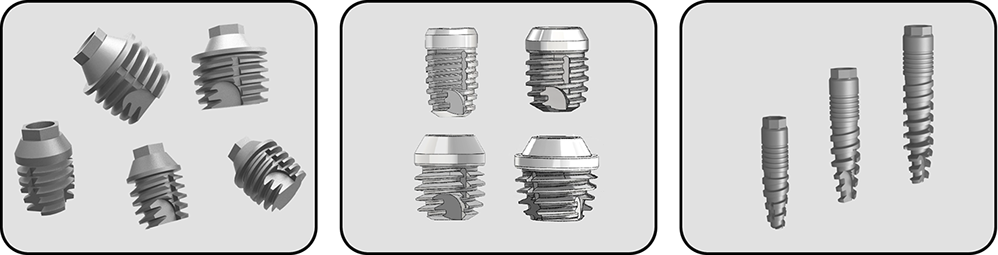

Short-TTM
Part Name Part # HA Part # RBM Part # BioTi
Thread Implant 4.0 x 6 200-140-006
HA
200-140-006
RBM
200-140-006
BioTi
Thread Implant 4.5 x 6 200-145-006
HA
200-145-006
RBM
200-145-006
BioTi
Thread Implant 5.0 x 6 200-150-006
HA
200-150-006
RBM
200-150-006
BioTi
Thread Implant 5.5 x 6 200-155-006
HA
200-155-006
RBM
200-155-006
BioTi
Thread Implant 6.0 x 6 200-160-006
HA
200-160-006
RBM
200-160-006
BioTi
Short-T implants


SlimTM 3.0
Part Name Part # HA Part # RBM Part # BioTi
Thread Implant 3.0 x 9 200-130-009
HA
200-130-009
RBM
200-130-009
BioTi
Thread Implant 3.0 x 11 200-130-011
HA
200-130-011
RBM
200-130-011
BioTi
Thread Implant 3.0 x 14 200-130-014
HA
200-130-014
RBM
200-130-014
BioTi
Short-T implants



SummaTM
Part Name Part # HA Part # RBM Part # BioTi
Thread Implant 3.5 x 9 200-135-009
HA
200-135-009
RBM
200-135-009
BioTi
Thread Implant 3.5 x 11 200-135-011
HA
200-135-011
RBM
200-135-011
BioTi
Thread Implant 3.5 x 14 200-135-014
HA
200-135-014
RBM
200-135-014
BioTi
Short-T implants
Short-T implants
Thread Implant 4.0 x 9 200-140-009
HA
200-140-009
RBM
200-140-009
BioTi
Thread Implant 4.0 x 11 200-140-011
HA
200-140-011
RBM
200-140-011
BioTi
Thread Implant 4.0 x 14 200-140-014
HA
200-140-014
RBM
200-140-014
BioTi
Short-T implants
Thread Implant 4.5 x 9 200-145-009
HA
200-145-009
RBM
200-145-009
BioTi
Thread Implant 4.5 x 11 200-145-011
HA
200-145-011
RBM
200-145-011
BioTi
Short-T implants
Thread Implant 5.0 x 9 200-150-009
HA
200-150-009
RBM
200-150-009
BioTi
Thread Implant 5.0 x 11 200-150-011
HA
200-150-011
RBM
200-150-011
BioTi
Thread Implant 5.0 x 14 200-150-014
HA
200-150-014
RBM
200-150-014
BioTi
Short-T implants
Thread Implant 5.5 x 9 200-155-009
HA
200-155-009
RBM
200-155-009
BioTi
Short-T implants
Thread Implant 6.0 x 9 200-160-009
HA
200-160-009
RBM
200-160-009
BioTi


thread_finimage   Slim
Short-TTM   SlimTM 3.0
  • Ideal for minimal bone height
  • Immediate Fixation
  • Place with Thread-In or Push-In techniques
  • Prevent Micro-Movement
  • Minimally invasive procedure
  • Eliminates bone grafting procedures
  • Avoid nerve injuries
  • Prevent damage to vital structures
  • Multiple placement & restorative solutions
  • Simplify treatment planning
  • Increase treatment plan acceptance
  • Cost effective
  • Minimal inventory required
  • Only Short Thread Implant with Locking Taper
    engagement (True Morse 1.5°)

  • Ideal for narrow ridges:
    Pre-Maxilla & Mandibular anterior areas
  • Solution for decreased interproximal spaces
  • Avoid bone grafting
  • Facilitates Ridge Splitting
  • Multiple placement & restorative options
  • Increase case acceptance
  • Immediate Fixation prevents Micro-Movement
  • Place with Thread-In or Push-In techniques
  • Minimally invasive procedures
  • Avoid nerve injuries
  • Prevent possible damage to vital structures
  • Cost effective
  • Only Narrow Thread Implant with a Locking Taper engagement (True Morse 1.5)

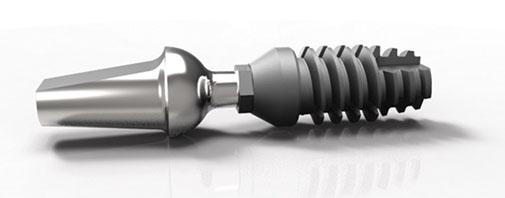

SummaTM
  • Immediate Placement
  • Immediate Fixation
  • Immediate Loading
  • No micro movements
  • Extra crestal bone support
  • More room for bone over the implant
  • Facilitates gingival adaptation

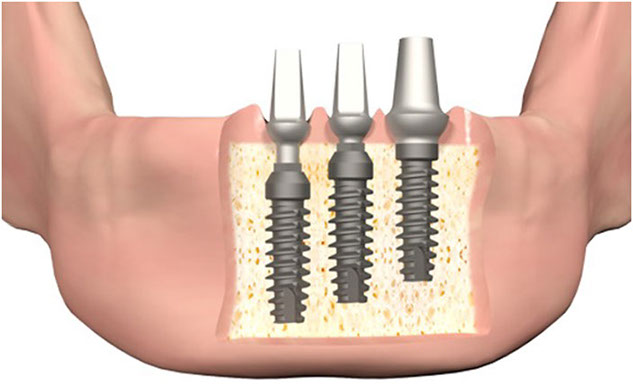

DIFFERENT BONE LEVELS
SAME IMPLANT

thread_finimage

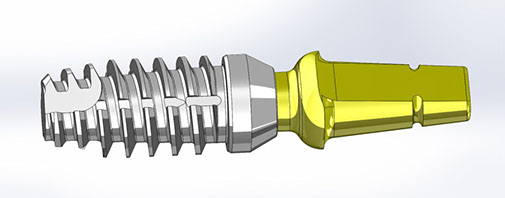

Quantum’s Self Tapping Thread Implants


Place:
  • 2mm subcrestal
  • At the crest
  • 2mm supracrestal
  • Anywhere in between
Provides:
  • Immediate Fixation
  • Immediate Loading
  • Immediate Placement



thread_finimage

SAME 9mm IMPLANT AT DIFFERENT BONE LEVELS

  • 9 mm length implant placed subcrestal becomes an 11mm implant
  • 9 mm length implant placed at the crest is a 9 mm implant
  • 9 mm length implant placed supracrestal becomes a 6 mm implant



  • Only Implant System with variable bone levels using the same implant
  • Complete freedom of choice during surgery and the restorative phase
  • Available in all Quantum Implants’ length and diameters
  • No other implant company offers you this advantage
