HEALING PLUG

TaperLock Abutments

One Stage

Transfers

Healing Plug

One Stage 3.5 R

Healing Plug

One Stage 4.0 R

Healing Plug

One Stage 5.0 R

050-135-100

050-140-100

050-150-100

Part Name

Part Number

Healing Plug

One Stage 3.5 L

Healing Plug

One Stage 4.0 L

Healing Plug

One Stage 5.0 L

500-135-100

500-140-100

500-150-100

Part Name

Part Number

Healing Plug

One Stage 4.0 Si

Healing Plug

One Stage 5.0 Si

Healing Plug

One Stage 6.0 Si

500-140-101

500-150-101

500-160-101

Part Name

Part Number

Healing Plug

One Stage 4.0 3P Si

Healing Plug

One Stage 5.0 3P Si

Healing Plug

One Stage 6.0 3P Si

500-140-101-3

500-150-101-3

500-160-101-3

Part Name

Part Number

Healing Plug

Short

Healing Plug

5.0 Regular

Healing Plug

5.0 Long

• Short Healing Plug (005-150-100) - Use when placing the top portion of the implant (hex) leveled with the crest of the ridge or slightly above. It is universal for every implant diameter
• Healing Plugs - Regular and Long are used when the implant is submerged below the ridge. Available in 3 diameters:
• 3.5, 4.0, 5.0 mm
• Choose according to the diameter of the TaperLock Abutment planned to be used
• The Regular and Long Healing Plugs are selected according to tissue thickness

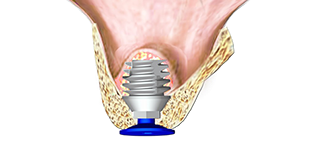

• Healing Plug Sinus has a TaperLock Thread connection and a larger diameter head than the implant to prevent the implant from falling into the sinus

|                        |                        |                         |                        |                         |
