C & B CUSTOM TAPERLOCK

THREAD ABUTMENTS

2mm



Hex



Hex

Custom TaperLock Thread

501-050-025

501-051-025

501-052-025

 Custom TaperLock Thread

Abutment 5.0 - 25 S



Custom TaperLock Thread

Abutment 5.0 - 25 R



Custom TaperLock Thread

Abutment 5.0 - 25 L

501-050-025

501-051-025

501-052-025

  Part Name

  Part Number

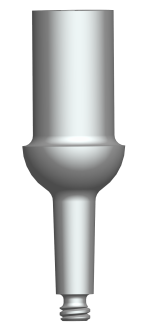

TaperLock Thread

 C-B TaperLock Thread

Abutment 4.0 - 0 T-R



C-B TaperLock Thread

Abutment 4.0 - 0 T-R

501-140-001

501-140-004

  Part Name

  Part Number

501-140-001

501-140-004

501-150-000

501-150-002

C-B TaperLock Thread

Abutment 5.0 - 0 T-S



C-B TaperLock Thread

Abutment 5.0 - 0 T-R



C-B TaperLock Thread

Abutment 5.0 - 0 T-L

501-150-000

501-150-001

501-150-002

  Part Name

  Part Number

501-150-001

C & B Custom TaperLock

Thread Abutments

A

B

C

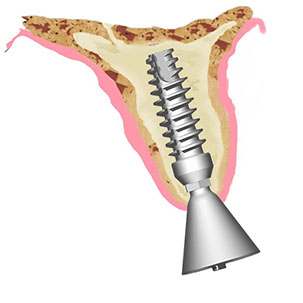

  • Place and thread into position with finger pressure or with a torque wrench at 32 Newtons. Retighten after 5 minutes to compensate for metal elongation (any implant system screw should be retightened). Fig. A

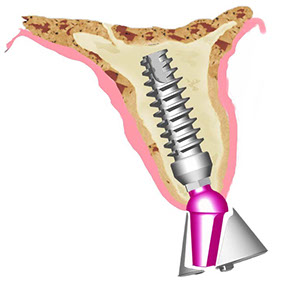

  • Once in position prep with a carbide burr to the desired angulation and height, like conventional crown and bridge. Fig. B
  • Impression or scanning can be done like conventional crown and bridge
  • Cement crown to the abutment. Fig. C

|                        |                        |                         |                        |                         |
