ABUTMENTS
C & B TaperLock
C & B TaperLock
RES-QTM
ABUTMENT SYSTEM
QFit
QFit
2mm
504-050-000
504-050-015
504-050-025
Res-Q Low Profile TaperLock
Abutment 5.0 - 0 S
Res-Q Low Profile TaperLock
Abutment 5.0 - 15 S
Res-Q Low Profile TaperLock
Abutment 5.0 - 25 S
504-050-000
504-050-015
504-050-025
Part Name
Part Number
Hex
Hex
504-000-000
Res-Q Low Profile Retention
and Impression Post
504-000-000
Part Name
Part Number
Res-Q Low Profile
Transfer Analog
504-500-000
Part Name
Part Number
504-500-000
503-504-000
60 Durometer
503-504-001
70 Durometer
503-504-002
80 Durometer
503-504-003
85 Durometer
503-504-004
90 Durometer
O-Ring Green Soft 60
O-Ring Black Soft 70
O-Ring Red Medium 80
O-Ring Blue Hard 85
O-Ring Black Hard 90
503-504-000
503-504-001
503-504-002
503-504-003
503-504-004
Part Name
Part Number
RES-QTM
ABUTMENT SYSTEM
- Low vertical dimension solution with 0°, 15°, and 25° angulations
- Ideal for Maxilary Anterior Esthetics
- Place at tissue level in cases with limited vertical dimension

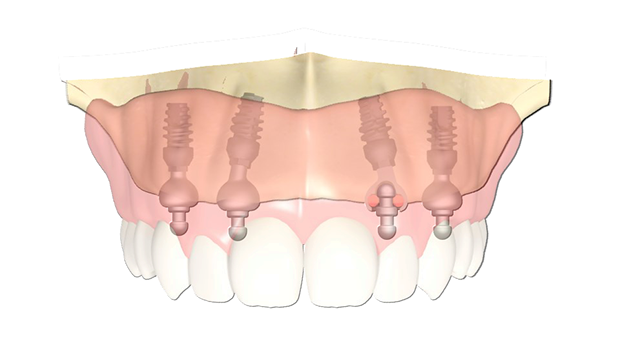

- Retention post is processed into the prosthesis, avoiding the “Camel Mouth” effect
- Retentive portion of the abutment is at the tissue level or below

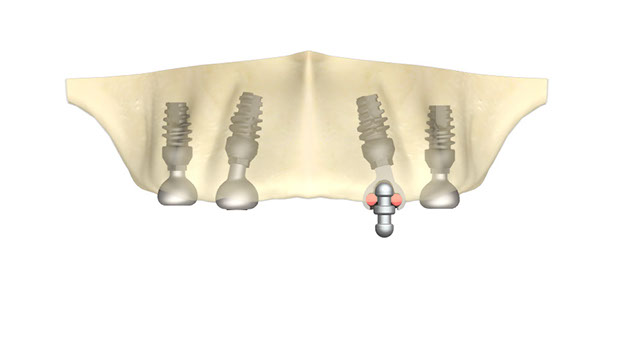

- Insert the retention post in the abutment and take the impression
- Transfer the retention post to the analog and pour the impression
- Retention post is processed into the prosthesis at the lab or chairside
