INSTRUMENTATION



Rapid Mounts



Rapid Mounts

BONE HARVESTING DRILLS



Drills and Caddy



Drills and Caddy



Drivers



Drivers



Surgical Accessories



Surgical Accessories



Pliers & Forceps



Pliers & Forceps



Bone Expanders



Bone Expanders



Motors / Handpieces



Motors / Handpieces

  Part Name

  Part Number

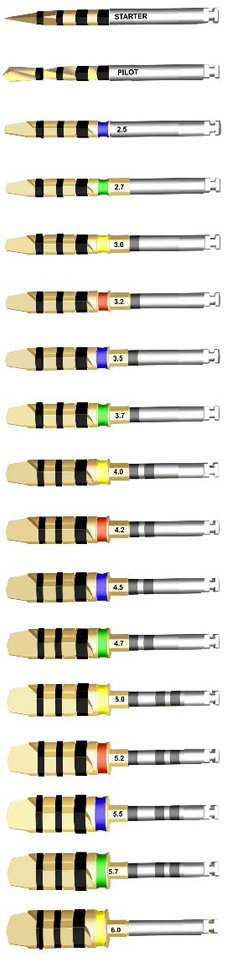

Starter Drill

Pilot Drill

Bone Harvesting Drill

2.5mm



Bone Harvesting Drill

2.7mm



Bone Harvesting Drill

3.0mm



Bone Harvesting Drill

3.25mm



Bone Harvesting Drill

3.5mm



Bone Harvesting Drill

3.7mm



Bone Harvesting Drill

4.0mm



Bone Harvesting Drill

4.2mm



Bone Harvesting Drill

4.5mm



Bone Harvesting Drill

4.7mm



Bone Harvesting Drill

5.0mm



Bone Harvesting Drill

5.2mm



Bone Harvesting Drill

5.5mm



Bone Harvesting Drill

5.7mm



Bone Harvesting Drill

6.0mm

900-000-120

900-000-200

900-000-250

900-000-270

900-000-300

900-000-325

900-000-350

900-000-370

900-000-400

900-000-420

900-000-450

900-000-470

900-000-500

900-000-520

900-000-550

900-000-570

900-000-600

  Part Name

  Part Number

Drill Extender

900-111-000

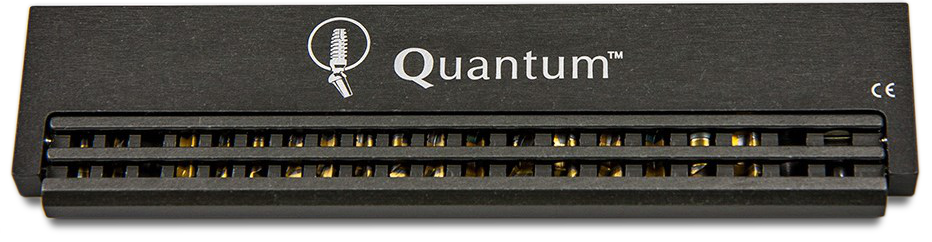

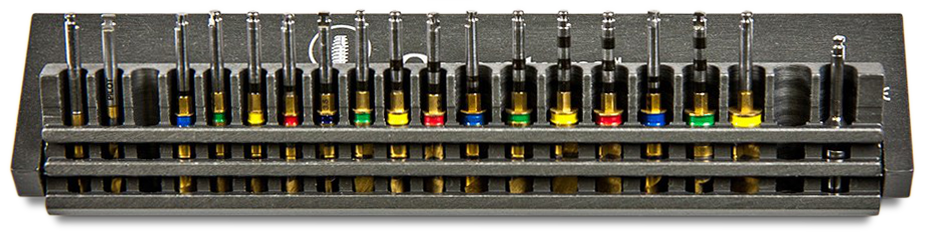

DRILL CADDY

  Part Name

  Part Number

Drill Caddy

900-000-000

  • Drills are designed to collect autogenous bone to graft over the sloping shoulders of the implants, sinus grafting, bone expansion, ridge augmentation, etc.
  • Any grafting material remaining at the bottom of the osteotomy after drilling should be removed with a curette and saved before implant placement
  • Drill at 100 RPM
  • Hand drilling is also available
  • Drills are made of Hardened Steel and coated with Titanium Nitride to maintain sharpness, extend the life of the drills, and decrease heat and friction

|                        |                        |                         |                        |                         |
