Carrier Sleeve
902-044-020
Carrier Insert
902-033-020
Implant Mount Carrier
Assembly
Carrier Sleeve
Carrier Insert
902-345-000
902-044-020
902-033-020
Part Name
Part Number
Assembly
902-345-000

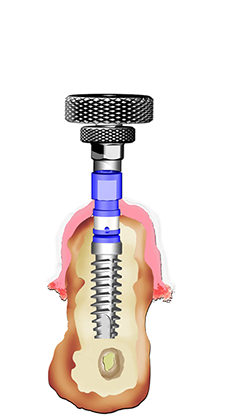

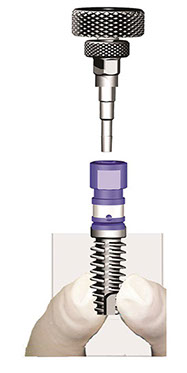

Apply pressure to
the Carrier Knob of
the Insert toward the
implant to firmly
engage the implant
Fig. 3
Fig. 1
Fig. 2
Hold Carrier Insert
Knob while unscrewing
the Sleeve to prevent implant from rotating
To Unscrew
Rotate Carrier
Sleeve Clockwise
Fig. 4
Fig. 5
Fig. 6
