SULCUS REAMERS
INSTRUMENTATION
Rapid Mounts
Rapid Mounts
Sulcus Reamers
Sulcus Reamers
Drills and Caddy
Drills and Caddy
Drivers
Drivers
Surgical Accessories
Surgical Accessories
902-001-001
902-002-002
Abutments
Threaded Knob - Regular
Threaded Knob - Long
902-001-001
902-002-002
Part Name
Part Number
Pliers & Forceps
Pliers & Forceps
Bone Expanders
Bone Expanders
903-333-035
903-333-040
903-333-050
903-333-050-3
Sulcus Tap 3.5
Sulcus Tap 4.0
Sulcus Tap 5.0
Sulcus Tap 5.0 W3
903-333-035
903-333-040
903-333-050
903-333-050-3
Part Name
Part Number
Motors / Handpieces
Motors / Handpieces
903-111-111
903-111-111-3
903-011-011-3
Guide Wire W2
Sulcus Wire W3 R
Sulcus Wire W3 S
903-111-111
903-111-111-3
903-011-011-3
Part Name
Part Number
SEATING THE TAPERLOCK ABUTMENT—TWO STAGE TECHNIQUE:

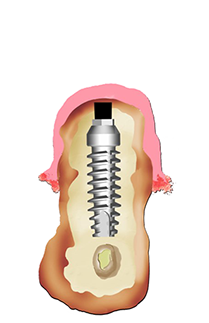

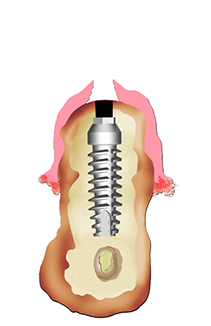

- Incision is made and Healing Plug is exposed. Fig. 1

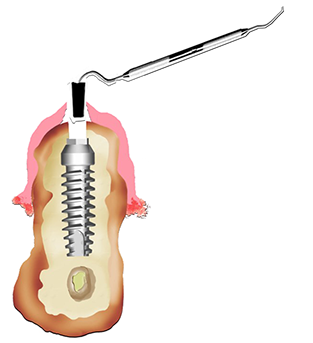

- The tip of the explorer is placed downward between the Hex of the Implant and the Healing Plug, then apply lever motion. Healing Plug is elevated and removed (use extreme care so that the patient does not aspirate the Healing Plug) Fig. 2

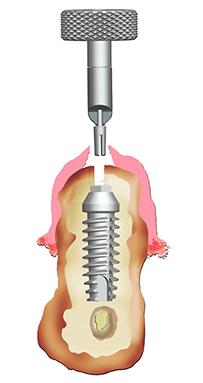

- The Guide Wire is inserted through the tip of the Sulcus Reamer, then insert the Guide Wire into the Implant. Fig. 3

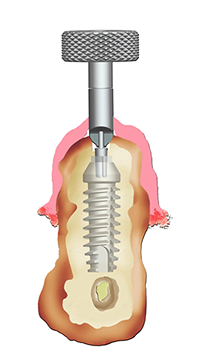

- Use the Sulcus Reamer to shape the bone to receive the TaperLock Abutment. Fig. 4
- The Sulcus Reamer is Rotated in order to shape the bone to allow the Abutment to properly seat over the bone and into the implant. Fig. 5

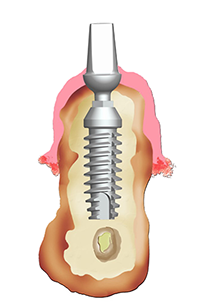

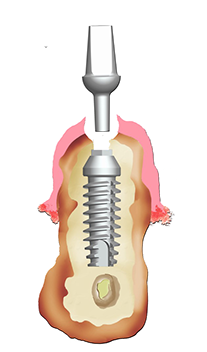

- Position the Abutment in the Implant and tap it so it is firmly engaged. Figs. 6-7
Fig. 1
Fig. 2
Fig. 3
